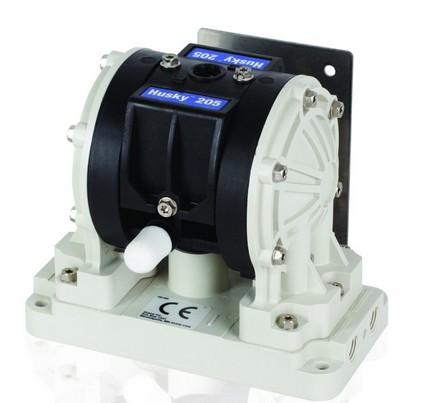

Husky 205 氣動雙隔膜泵
Husky 205 氣動雙隔膜泵 1/4英寸氣動雙隔膜泵 1/4 英寸（6.3 毫米）過流尺寸?？蛇x聚丙烯、乙縮醛和聚偏氟乙烯（PVDF）材質。
技術規(guī)格
最大工作壓力 ..........................................................................................100 psi (0.7Mpa，7bar)技術規(guī)格最大流量 ...........................................................................................................19 lpm (1.14m3
/h)
最大往復速度 干運轉 .....................................................................................................320 cpm
濕運轉 .....................................................................................................250 cpm
每往復流量 ..............................................................................................0.020 gallon(0.076 liter)
最大自吸高度 (干抽)D12096 ............................................................................ 8-10 ft.(2.5-3 m)
根據閥座，球和隔膜的不同組合而變化
最大輸送固體顆粒 ..............................................................................................0.06 in.(1.5 mm)
最大空氣消耗量 .......................................................................................9.0 scfm (0.252m3
/min)
空氣進口尺寸 ..........................................................................................1/4 in.npt(f)/1/4 in.bsp(f)
流體進口尺寸 ..........................................................................................1/4 in.npt(f)/1/4 in.bsp(f)
流體出口尺寸 ..........................................................................................1/4 in.npt(f)/1/4 in.bsp(f)
空氣出口尺寸 ..........................................................................................1/4 in.npt(f)/1/4 in.bsp(f)
重量 聚丙烯泵 ......................................................................................................2.0 lbs.(0.9 kg)
乙縮醛泵 ......................................................................................................2.5 lbs.(1.1 kg)
PVDF泵 .........................................................................................................2.8 lbs.(1.3 kg)
浸液部件 聚丙烯泵 ...............................................Glass-?lled Polypropylene,PTFE,Polypropylene
乙縮醛泵 ..............................................................Acetal with SST ?bers,Tedlon,Acetal
PVDF泵 ........................................................................................................PVDF,PTFE
在70psi和125cpm情況下的噪音級別 ................................................................................70dBA
操作手冊 ..........................................................................................................................308-652
